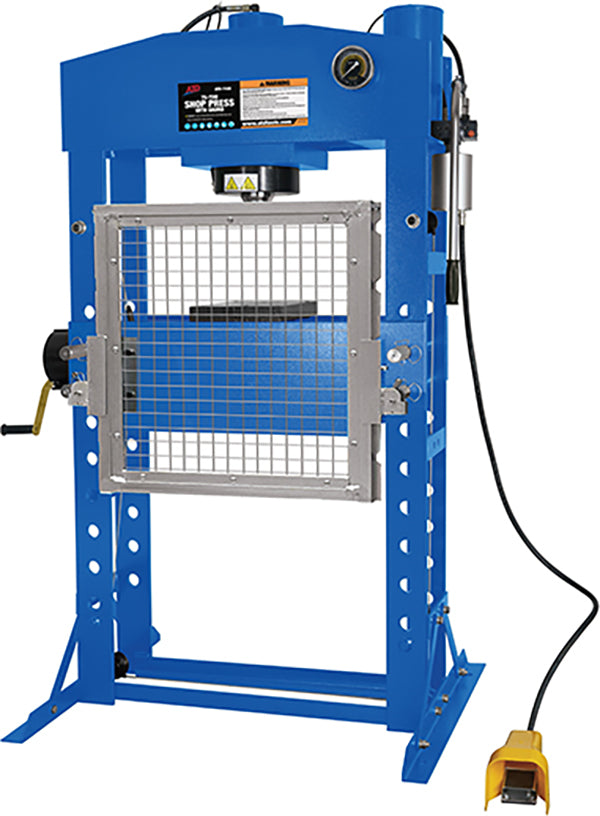

ATD 7458 75-TON SHOP PRESS WITH GUARD

Features:

• Fully welded frame for maximum strength and durability
• Double-speed pump for improved efficiency
• Foot control air valve allows effortless, hands-free operation of air motor
• Cylinder can be moved left or right to apply pressure exactly where it's needed
• Self-locking hand winch for easier raising and lowering of the press bed
• 8 Position bed allows work height adjustment of 4" each
• Large oil-filled anti-shock pressure gauge with stainless steel frame scale for US and metric tons
• Patented safety valve for longer service life
• Includes a set of non-slip steel blocks for safer operation
• Includes protective work guard for added safety
• Meets or exceeds ASME PASE 2019 standards

Specifications:

• Capacity | 75 Tons
• Hydraulic stroke | 9.88"
• Working Range | 6.63" to 34.75"
• Horizontal Ram Travel | 10.25"
• Bed width | 31.5"
• Bed depth | 10.9"
• Bed inner dimensions (effective area) | 9.9"
• Bed Positions | 8
• Press Size | 51.2" W x 31.5" D x 74.63" H
• Air Pressure | 110 to 120 psi
