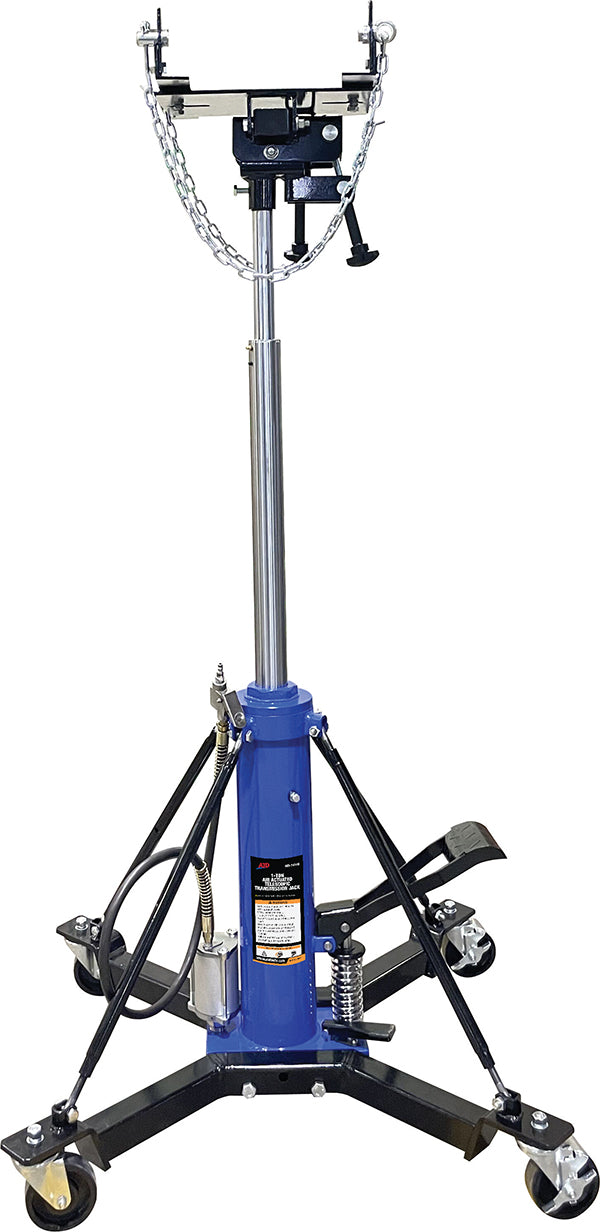

ATD 7434B 1-Ton Air/Hydraulic Telescopic Trans Jack

Features:

• Extra-wide base lowers center of gravity and promotes stability
• Rugged 4" polyurethane wheels for smooth and easy movement, 2 with brakes
• Foot release pedal provides controlled lowering of load
• Saddle adjusts to fit most pan configurations
• Chrome plated rams for maximum durability
• A compact, yet powerful air motor is equipped to raise the load to the desired height efficiently, effortlessly and safely
• Load control chain secures transmission to jack
• Meets or exceeds ASME PASE 2019 standards

Specifications:

• Capacity | 1 Ton
• Minimum Height | 36"
• Maximum Height | 76.56"
• Saddle Base | 9.5" x 13.4"
• Minimum Saddle Area | 9.6" x 16.5"
• Expanded Saddle Area Max. | 13.4" x 16.5"
• Saddle Range of Motion | Front: 27° Rear: 10° Left: 27.6° Right: 37°
• Air Pressure | 110-120 psi
