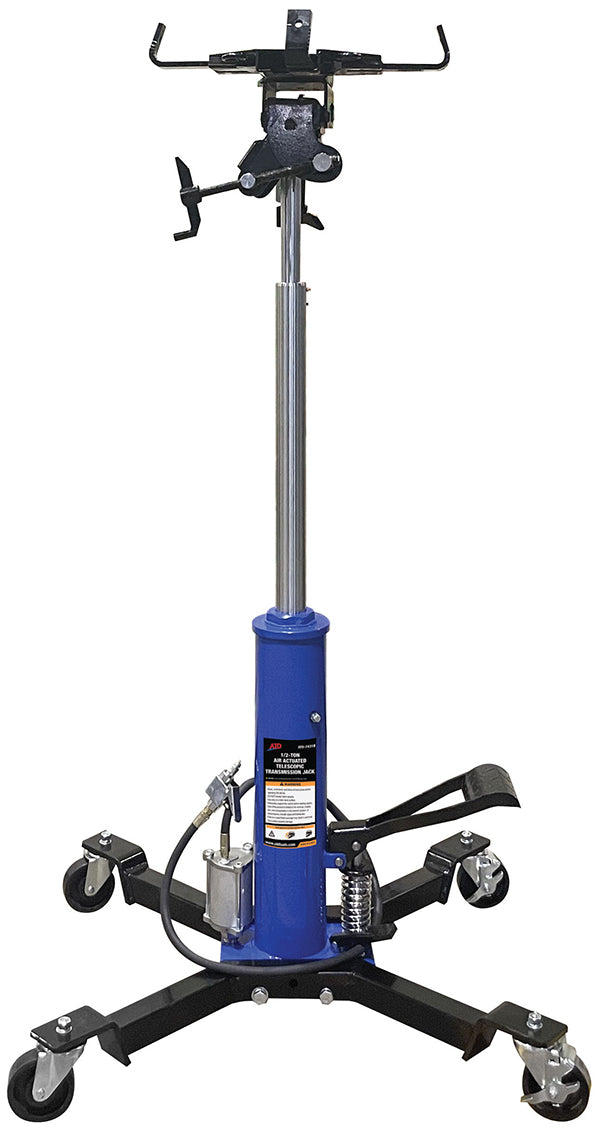

ATD 7431B 1/2-Ton Air Actuated Telescopic Transmission Jack

Features:

• Extra-wide base lowers center of gravity and promotes stability
• Rugged 4" polyurethane wheels for smooth and easy movement, 2 with brakes
• Foot release pedal provides controlled lowering of load
• Adjustable saddle for quick adjustment for most pan configurations
• Chrome-plated, two-stage rams maximize the high reach
• A compact, yet powerful air motor is equipped to raise the load to the desired height efficiently, effortlessly and safely
• Nylon strap to secure transmission to jack
• Meets or exceeds ASME PASE 2019 standards



Specifications:

• Capacity | 1/2 Ton
• Minimum Height | 37"
• Maximum Height | 77.5
• Saddle Base | 11.4" x 11.4"
• Saddle Area Min. | 6.3" x 6.3"
• Expanded Saddle Area Max. | 18" x 18"
• Saddle Range of Motion: Front & Rear | ≥30°; Left & Right: ≥10°
• Air Pressure | 110-120 psi
• Shipping Weight | 167.5 lbs.

Available Accessories (Sold Separately):

• ATD-7470 | Fuel Tank Adapter
