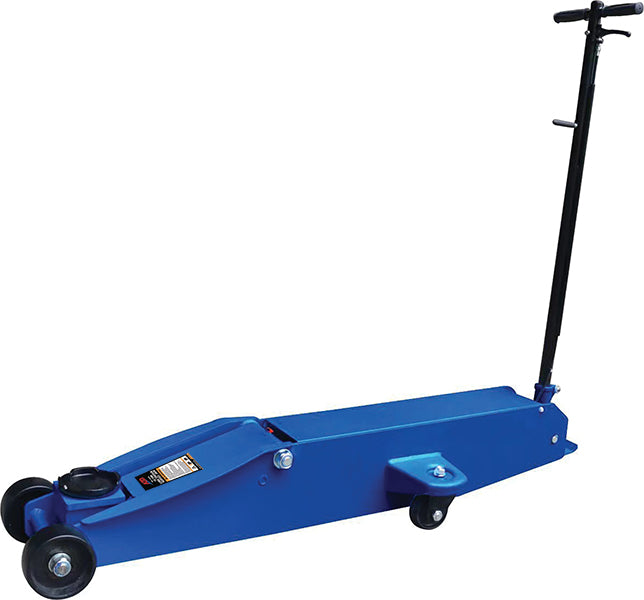

ATD-7391B 10T Long Chassis Service Jack

Heavy-duty hydraulic performance for garages, equipment dealers, commercial service and more.

Features:

• Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
• Chrome plated ram for additional rust resistance
• Wiper seals protect hydraulic system from contaminates
• Controlled descend with speed limit to ensure safe operation
• Exclusive Swift Lift Technology allows the jack to reach maximum height in 5 pumps under no load
• Heavy-duty front wheels and swivel rear casters provide smooth maneuvering and positioning
• Overload and bypass safety valves prevent use beyond the rated capacity and over extension of the ram
• Handle can be locked into one of three positions from horizontal to vertical and has independent release knob
• Meets or exceeds current ASME PASE 2024 standards

Specifications:

• Capacity | 10 Tons
• Minimum Height | 6-1/4"
• Maximum Height | 25-1/2"
• Handle Length | 42-5/8"
• Jack Size - Length | 62-13/16"
• Jack Size - Width | 21-5/8"
• Jack Size - Height | 14-9/16"
• Saddle Size | 5-1/8"
• Shipping Weight | 298 lbs.
