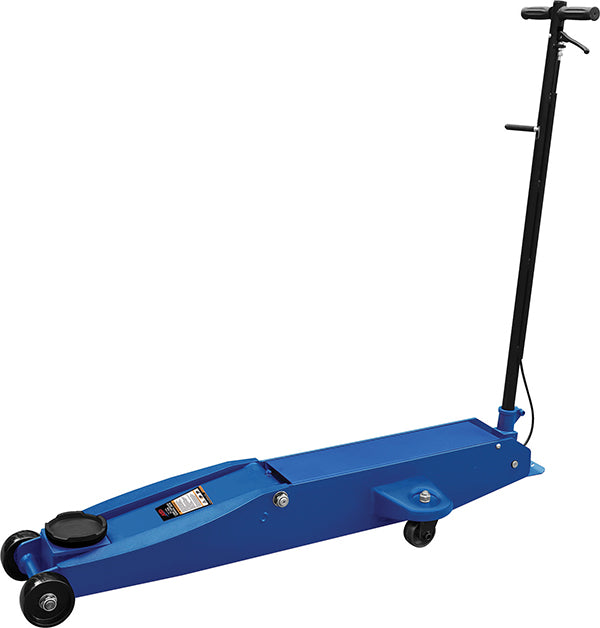

ATD 7390B 5T Long Chassis Service Jack

Features:

• Heavy-duty hydraulic performance for garages, equipment dealers, commercial service and more
• Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
• Chrome plated ram for additional rust resistance
• Wiper seals protect hydraulic system from contaminates
• Controlled descend with speed limit to ensure safe operation
• Exclusive Swift Lift Technology allows the jack to reach maximum height in 3 pumps under no load
• Heavy-duty front wheels and swivel rear casters provide smooth maneuvering and positioning
• Overload and bypass safety valves prevent use beyond the rated capacity and over extension of the ram
• Handle can be locked into one of three positions from horizontal to vertical and has independent release knob
• Meets or exceeds ASME PASE 2019 standards

Specifications:

• Capacity Ton | 5
• Minimum Height | 5.875"
• Maximum Height | 25.5"
• Handle Length | 42.625"
• Jack Size | 58.25" L x 20.875" W x 12.625" H
• Saddle Size | 5.125"
• Shipping Weight | 226 lbs.
