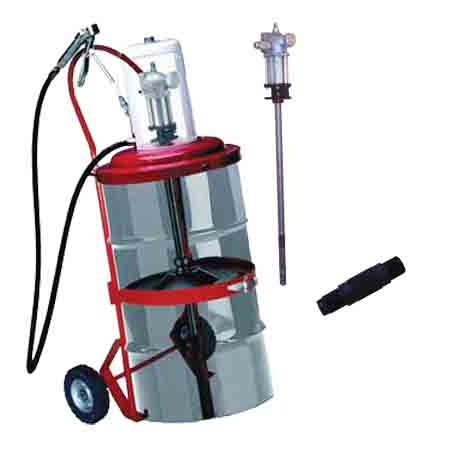

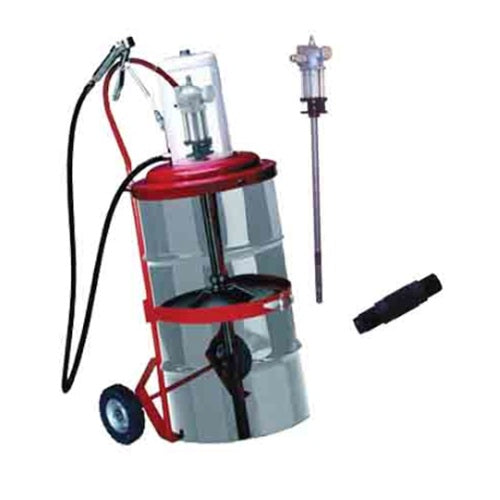

ATD 5221 50:1 Grease Pump Assembly for 120 lbs. Drum

Will dispense 40 oz. of NLGI 0-2 grease per minute @ 150 psi. Hand truck provides convenient transportation for unit and has (2) semi-pneumatic disc wheels and a locking, screw-type clamp. DRUM NOT INCLUDED.

Includes:

• 50:1 double acting barrel pump
• 6 ft. high-pressure grease delivery hose
• Grease control valve
• Rapid disconnect air coupler
• Air nipple
• Muffler
• Follower plate (ATD-5325) with outer rubber wiping ring on the drum and inner rubber wiping ring on the pump tube
• Solid 1 piece hand truck and drum cover
• Output: 80 cu.in./min. of NLGI #2 grease at 100 psi @ 70˚ F ambient temperature (.35 cu. in./cycle)
• Air Inlet: 1/8" NPT(f)
• Lube Outlet: 1/4" NPT(f)
• Shipping Weight: 55 lbs.

Available Accessories & Replacement Parts

• ATD-5217-1 - 50:1 Double Acting Grease Replacement Pump for 120 lbs. Drum Systems
• Rapid disconnect air coupler, air nipple and muffler (fits all makes and models)
• Downtube Diameter: 1"
• Output: 80 cu.in/min. of NLGI #2 grease at 100 psi @ 70˚F ambient temperature (.35 cu. in./cycle)
• Air Inlet: 1/8" NPT(f)
• Lube Outlet: 1/4" NPT(f)
• ATD-5324 - Piston Assembly
• Piston assembly for lower downtube on all air operated grease pumps
