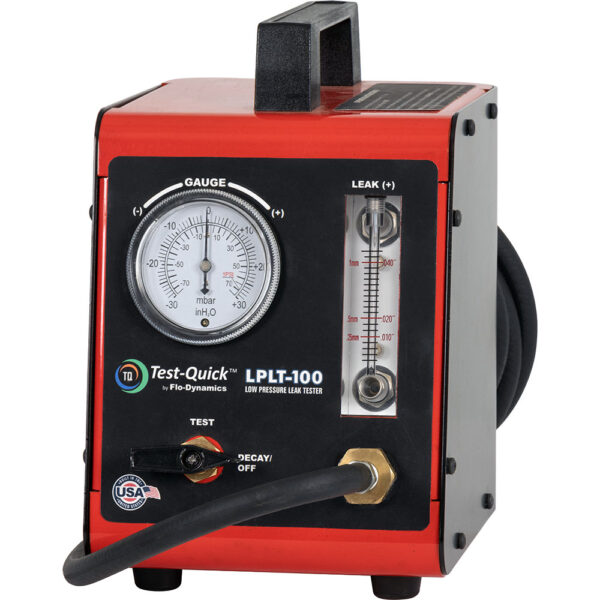

Flo Dynamics LPLT-100 EV Battery Pack Leak Tester

FORD APPROVED!
The new Test-Quick LPLT-100 by Flo-Dynamics is the most affordable and simple to use low-pressure leak tester on the market. It is the only low-pressure leak tester that is guaranteed to be 100% free of vapor or smoke leak detection dye. Leak test EV battery packs without contamination, using filtered and moisture-free air to ensure a correct seal after performing service. The LPLT-100 allows for a technician to connect, test, and provide an accurate leak flow rate on the flow meter. Simply switch the control knob to Decay/Off to perform pressure decay testing. The LPLT-100 is also perfect for testing insulated gloves. OSHA requires the gloves to be tested before each use. Methods of rolling the glove or pumping up the glove and dipping in water are time consuming and/or inaccurate. When equipped with the optional GTA-10 adapter, The LPLT-100 can accurately confirm the integrity of a glove within seconds. This patent pending glove test adapter (P/N: 40100170) comes with two different sized discs to fit all gloves, all in a convenient carrying case for portable and protective storage. Also included is a dock magnet that mounts to the side of the LPLT-100 for a hands-free test.

Features:

• Uses only shop air (75 – 175 psi)

• Supply pressure 14" WC +/- 1"

• Tests with 100% filtered and moisture free air

• Designed in collaboration with Ford Engineering to comply with EV battery pack testing procedures

• Flow meter and gauge provides two testing modes – leak flow rate or pressure decay

• Test supply line 120", 3048 mm

• Handheld and lightweight

• Limited one year warranty

• Ford approved

Specifications:

• Dimensions | 10-3/4"h x 7"w x 10"d

• Weight | 9.5 lbs

• Power | 75-175 psi shop air
