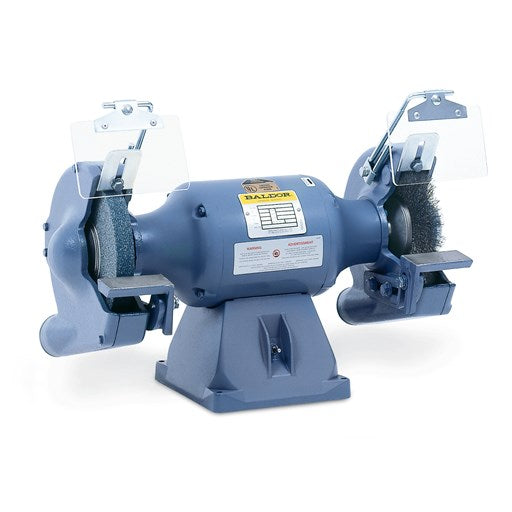

Built for heavy duty grinding, powered by 3/4 hp Baldor motor, Slim design provides extra clearance for grinding odd-shaped pieces Cast iron exhaust-type guards accommodate a 3" vent pipe, Adjustable cast iron tool rest, spark breaks and eyeshields. Grinder supplied with one coarse 36 grit aluminum oxide grinding wheel and one 60 grit aluminum oxide wheel, Wheels are 8" diameter, 3/4" arbor hole, Base mounted on/off switch and rubber feet to minimize vibration, Two wheels 8" x 1" x 3/4", Wheel guards and tool rests are cast iron, Designed to comply with OSHA standards under normal usage, Shipping Weight: 98 lbs, UL and CSA Agency Approval, Supplied with 36 and 60 grit wheels, Factory connected for 208-230 volts, Factory voltage changes are extra and add approximately 4-6 weeks additional lead time. no power cord

Applications:

General purpose grinding. Used for shaping and objects by removing material. Sharpens tools. 3/4 horsepower motor is suitable for heavy grinding.

Specifications:

• Catalog Number | 8102W
• Specification Number | G8-166-14
• Horsepower | 3/4
• Voltage | 208-230/460
• Hertz | 50//600
• Phase | 3
• Amps | 1.5-1.4/7
• RPM | 1500//1800
• Baldor Type | 3524M
• Max Wheel Size | 8 inches
• Bearings | 6206
• Mechanical Specification Number | G8LY0166
• Electrical Specification Number | G8WG0014
• UL Listed | YES
• CSA Certified | YES

PLEASE NOTE, IMPORTANT INFORMATION:

• Manufacturer's Warranty Only!
