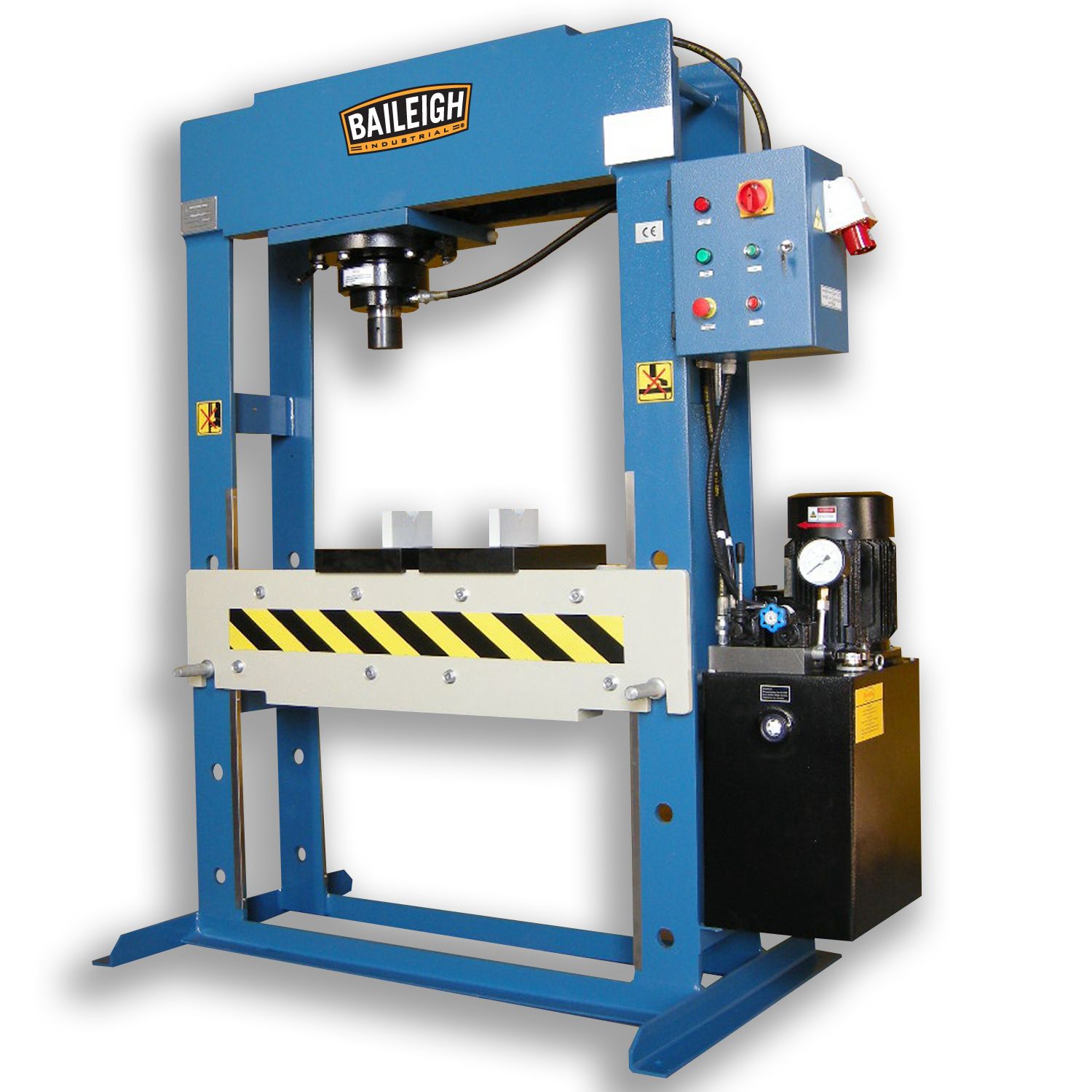

Baileigh Industrial HSP-60M 60-Ton Hydraulic Press

If you’ve outgrown your pneumatic press, our HSP-60M 60-ton hydraulic press gives you the extra power of a 5hp motor and the rigid accuracy of a fully-welded heavy steel plate frame.

Features:

• 60-ton capacity.

• 41.25" working width.

• 7.5" cylinder moves left and right within the frame, ideal for off-center parts.

• Controlled by a piston-style hydraulic pump.

• Includes 2-piece V-block set.

• Pressure gauge comes standard.

• Welded steel structure withstands the machine’s full force without flexing.

• Rear safety cage included (not shown in pictures)

• Baileigh covers this 60-ton hydraulic workshop press with a 1-year parts warranty as well as lifetime technical support by phone.

Specifications:

• Stock Number | BA9-1012740A

• Model Number | HSP-60M

• Warranty | 1 Year

• Gross Weight | 2200

• Net weight | 2200

• Cylinder Movable | Yes

• Distance From Table To Ram | Min. 10.04" - Max. 39.57"

• Minimum Return Speed | .303" / sec.

• Piston Diameter | 3"

• Speed | 1440 rpm
