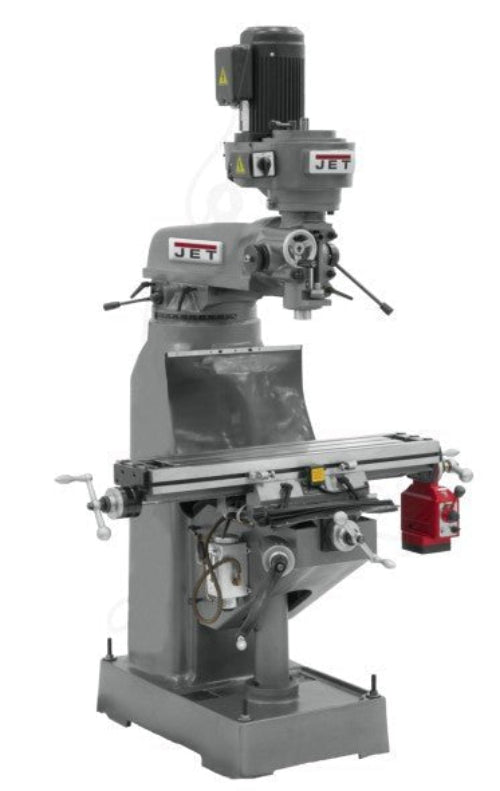

JET 690082 JTM-1 Step Pulley Milling Machine 230V 3Ph

SKU: JET690082
UPC: 662755105883
Shipping: Free Shipping
Shipping: Free Only In the US 48 States
$10,999.00

JET 690082 JTM-1 Step Pulley Milling Machine 230V 3Ph

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.

Features:

  • Certified Meehanite Castings
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Spindle head is internally cooled

Specifications:

  • Table Size | 9"l x 42"w
  • Quill Diameter | 3-3/8"
  • Number of Spindle Speeds | 16
  • Range of Spindle Speeds (RPM) | 80 - 5,440
  • Quill Down Feed Rates (IPR) | .0015 - .003 - .006
  • Spindle Travel | 5"
  • Head Movement | 90° R & L, 45° F & B
  • Max Distance Spindle to Table | 17-1/2"
  • Distance Spindle to Column (Max.) | 19"
  • Distance Spindle to Column (Min.) | 4-1/2"
  • Collet Capacity | 1/8 - 7/8
  • Table Longitudinal Travel | 23-7/8"
  • Table Longitudinal Travel With Powerfeed | 20-2/7"
  • Table Cross Travel | 12-1/2"
  • T-Slots (Number and Size) | 3 and 5/8"
  • T-Slot Centers | 2-1/2"
  • Work Table Weight Capacity | 550 lbs lbs
  • Travel of Knee | 14-1/2"
  • Travel of Ram | 13-3/8"
  • Motor | 2 HP, 230V, 3Ph
  • Overall Dimensions | 57"l x 64"w x 82"h
  • Weight | 2200 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

  • This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery
  • When ordering the checkout cart will incorrectly state that this ships by UPS
  • For other options or models, call 800-837-3818
