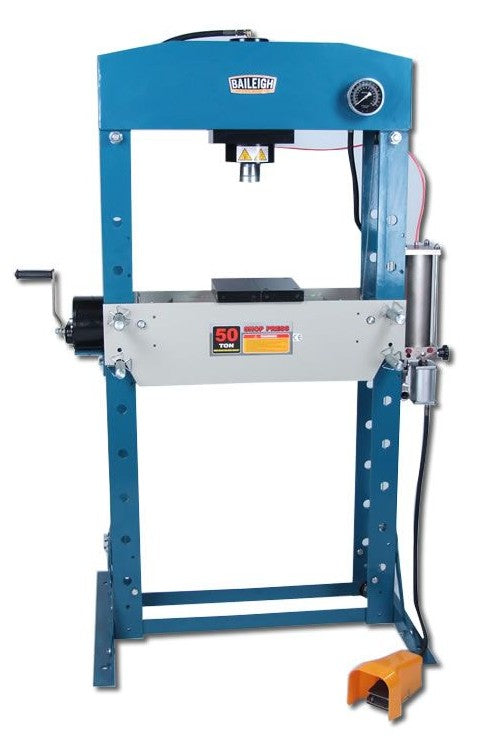

The most popular kind of H-frame press in fabrication and machine shops is the 50-ton upright. You won’t find a higher quality 50-ton pneumatic shop press than Baileigh’s Air/Hand Operated H-Frame Press HSP-50A.
28.5” working width.
Large 6” diameter cylinder with 7.8” stroke.
Industrial-grade hydraulics ensure years of smooth, useful operation.
Foot pedal allows for simple and convenient machine control.
Manual hand pump on the side of the HSP-50A offers more control for delicate applications.
Winch and pulley system lets you lift and lower the working table to save time (and back strain!) when you have to relocate the table.
Fully-welded steel main frame for maximum rigidity, so you can use all 50 tons of force regularly without the machine buckling under the pressure.
Comes standard with a set of V-blocks.
Covered by a 1-year parts warranty and lifetime technical support by phone.
Item Number | HSP-50A
Piston Head Diameter | 2.75"
Movable Cylinder | Yes
Working Width | 28.5"
Maximum Capacity | 50 tons
Cylinder Stroke | 7.8"
Cylinder Diameter | 6"
Distance From Table To Ram | Min. 2.72" - Max. 41.26"
Power | Pneumatic / Manual
Shipping Weight | 770lbs
Shipping Dimensions (Inches) | 83x39x16
Dimensions L x W x H | 84" x 39" x 16"
* specifications subject to change without notice.
