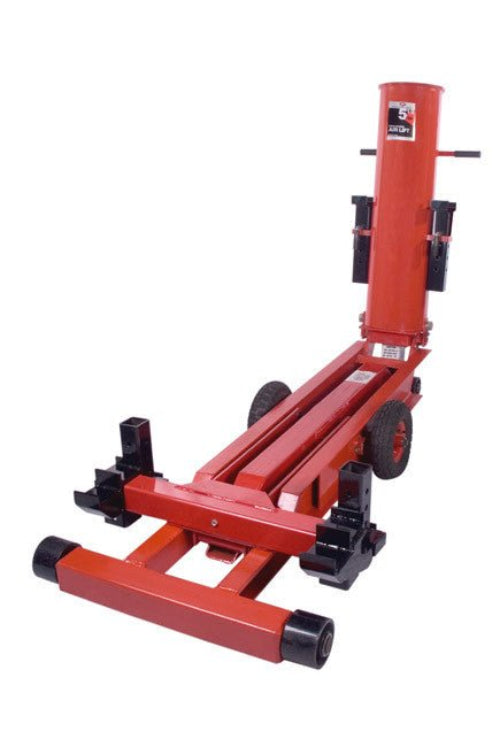

AFF 3596 5.5 Ton Long-Reach Air Lift

SKU: AFF3596
UPC: 874015002829
Shipping: Free Shipping
Shipping: Free Only In the US 48 States

AFF 5-1/2 Ton Long-Reach Air End Lift

AFF Air Lifts are designed to efficiently lift large truck, trailers, buses, heavy-duty construction equipment and agricultural vehicles. They function on 100% air for dependability and longevity. Designed for heavy-duty low-profile vehicles that require a longer reach in order to be securely lifted at the vehicle front axle or frame and can also be used on the bumer. The scissor action design and full shop air operation (200 PSI) provide more lift height under low-profile vehicles. Using its multiple saddle sizes and adjustments along with its standard drop-axle adapter it can lift from as low as 6 1/2" to a high 53 1/2" with a long 48" forward reach.


  • Steel saddles adjust between 23 and 45 widths to accommodate a wide variety of vehicle applications
  • 48 Forward reach (distance from cylinder to saddles)
  • Two saddle sizes and drop axle adapter increase versatility
  • Three-way heavy-duty air valve for precision lifting
  • Automatic safety lock engages in five preset positions
  • Two large pneumatic wheels for easy maneuverability
  • Lifts from 9 1/2;" to 53 1/2"
  • Scissors design provides lifting flexibility
  • AFF one-year limited warranty

This AFF Air End Lift ships by truck and extra shipping charges will apply to ship to a non-commercial address.


  • Model | 3596
  • Capacity | 5 1/2
  • Low Height | 6 1/2"
  • High Height | 53 1/2"
  • Length | 77"
  • Width (Base) | 23"
  • OverAll Height | 70"
  • Shipping Weight | 638
Click Here for the 5½ Ton Long Reach Air Lift Jack Parts List
Why buy AFF: AFF has been providing shop equipment since 1963. Unlike many import models, service and parts are available at over 250 service centers across the U.S.
