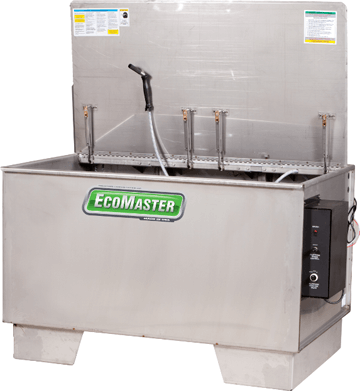

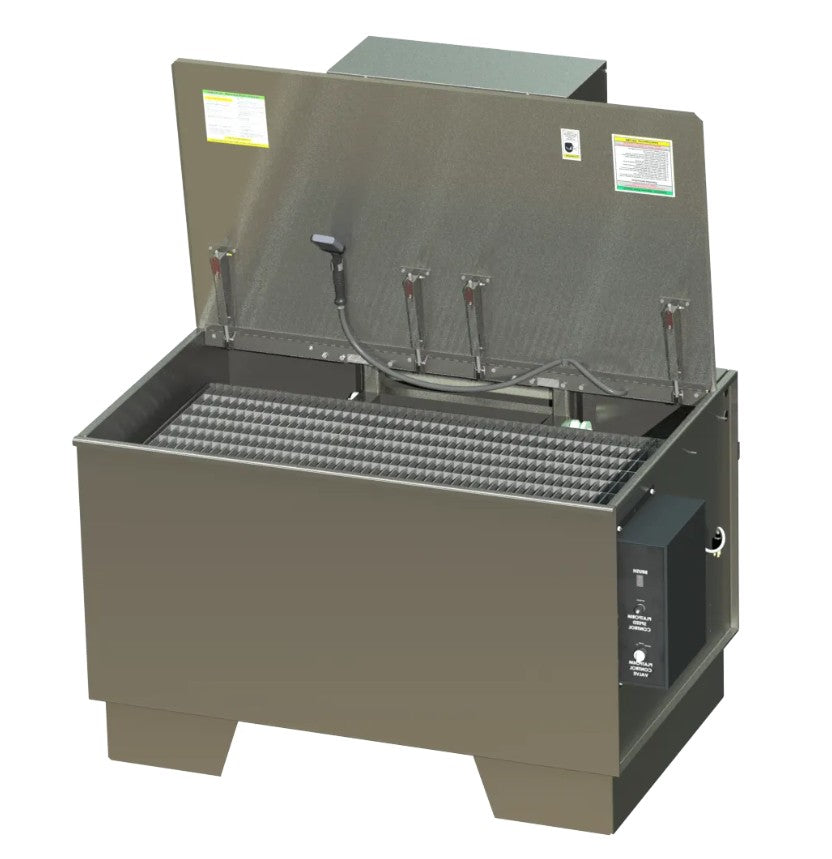

Fountain Industries EcoMaster 150, 149 Gallon Heated Agitating Lift Aqueous Parts Washer

The EM150 is our largest aqueous agitating lift part washer built for heavy-duty tasks using lift agitation to clean deep into crevices and blind holes. Parts can also be lowered to soak as a traditional dip tank. The lift and tray are suitable for parts and batch cleaning up to 750 lbs.

Function
Submerged agitation paired with detergents and heat remove greases, sludge, dirt, and debris provide clean parts with minimal effort. Agitation tank washers are well suited for parts with difficult to reach crevices, blind holes, and internal volumes where external spray or manual scrubbing doesn’t reach.

Features:

• Heavy Duty 10GA 304 Stainless Steel Tank

• 10.4 Sq.Ft., 54” x 27.75” Lift Platform

• 750 Lbs. Weight Capacity

• 150-Gallon Fluid Capacity

• Low Friction Roller Wheels (No power robbing slides)

• Modular 6kW Heating Available in 230V or 460V 1 PH

• On/Off Heating with 130°F Thermostat Preset

• Thermostat Over-Temp Protection

• 1.5 HP Industrial Pump 40 GPM @ 30 PSI

• Fire Safety Fusible Link for Lid and Lift

• 100mm Cylinder 1500 lbs. Peak Force @ 120 PSI

• Flow Requirements: 4 CFM @ 120 PSI

• Heavy duty steel construction for long lasting durability
• Self-cleaning agitating platform lifts parts to top for easy loading and unloading
• Filter regulator with auto drain
• Adjustable agitation speed
• Flow-through brush with polyester filaments for the toughest water-based cleaning applications.
• Durable, baked on powder coated epoxy finish
• Not to be used with chlorinated solvents
• Stainless steel spring-loaded door closures
• Thermostat is preset to deliver optimal cleaning temperature of 110°F
• Includes backup thermostat (non-adjustable)
• 6,000-Watt heater
• Electrical plug not included
• Stainless Steel

Specifications:

• Overall Dimensions | 50.5"l x 66"w x 70"h
• Inside Dimensions | 37.5"w x 57"l x 30"h
• Shipping Dimensions | 56"w x 69"l x 57"h
• Fluid Level | 18"
• Platform Dimensions | 27.75"w x 54"l
• Shipping Weight | 1200 lbs.
• Load Capacity | 750 lbs.
• Lift Requirements | 25CFM @ 120PSI
• Pump HP | Fractional
• Voltage | 230Vac
• Hertz | 60Hz
• Phase | 1PH
• Pump | 1Amp
• Heater | 30Amp
• Heater | 6000 Watt
