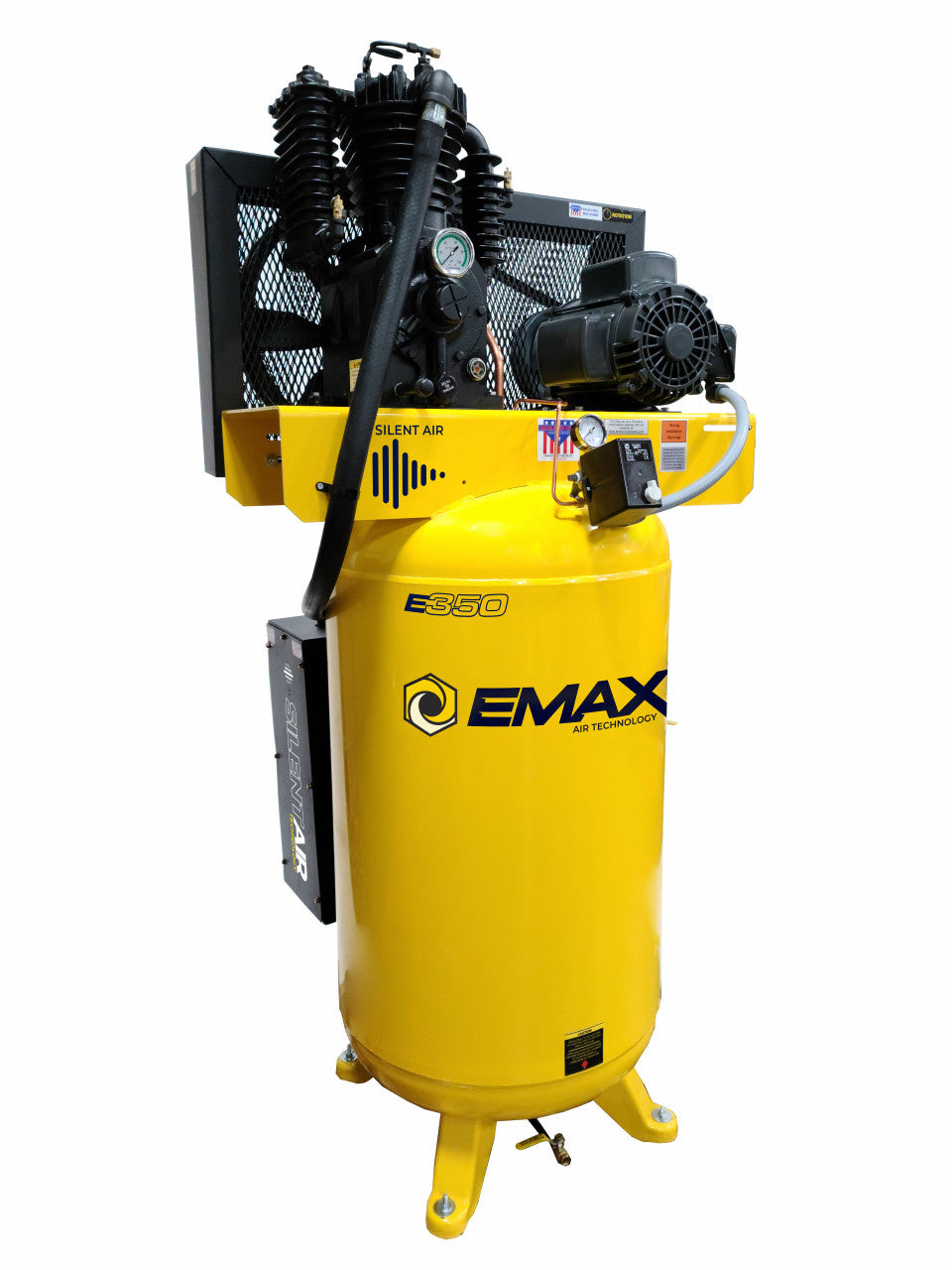

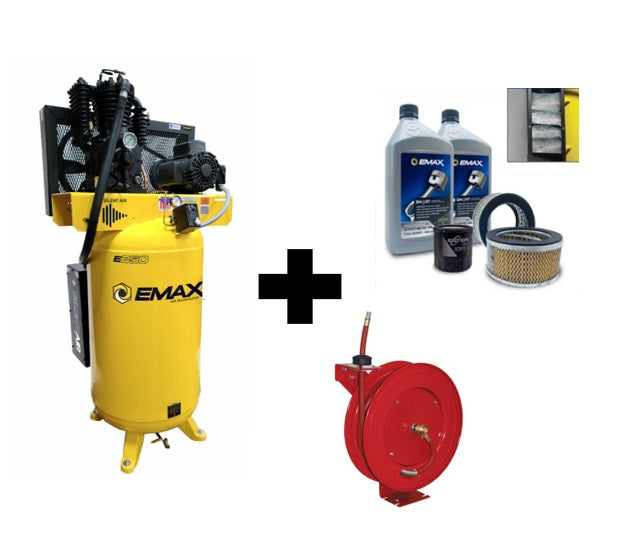

EMAX ES05V080I1 5 HP Industrial Air Compressor, 2 Stage, 1 Phase, 80 Gallon, Vertical, Silent Air System

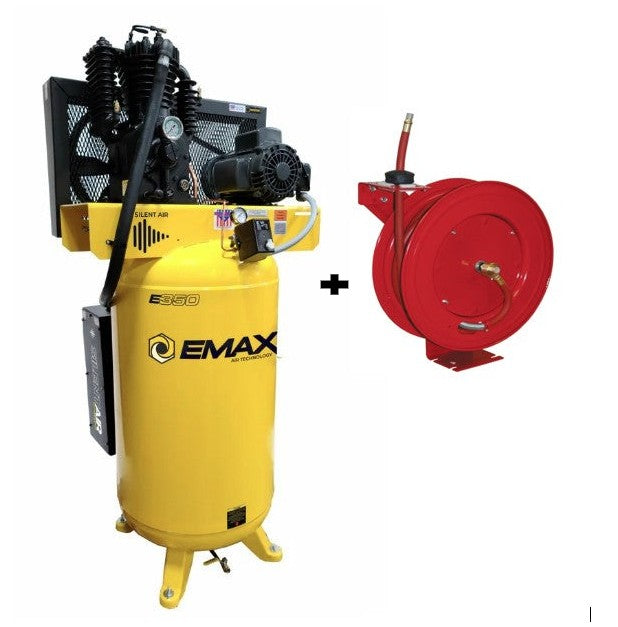

***FREE ATD-31166 HOSE REEL, 3/8" X 50' (HOSE INCLUDED)***

Silent Air Quiet Air Compressor

Engineered and manufactured in the U.S.A. The whisper series compressors reduce stationary compressor DBA ratings by as much as 25%! A noise suppression device was first conceived by EMAX engineers after feedback from competitor compressor users revealed a large number of complaints regarding the extreme noise level of their compressors in a work environment. Stationary air compressor noise levels typically require owners to incur the added expense of a building or structure to house the compressor in an attempt to reduce noise in the work environment. The Whisper can be installed and operated in all Garage, Farm Shop, and Industrial applications which eliminate the need for traditionally expensive and often inadequate separate buildings or structures to house the air compressor. The Whisper silent air systems are already installed on the back of the tank with brackets that are fabricated for easy removal and low profile.

The Whisper dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media within the silencer cabinet. As a result, the piston intake noise is trapped and dissipated within the silencer structure. As a result, the piston intake noise is trapped and dissipated within the silencer structure. It also acts as a secondary filtration for cleaner air.

Specifications:

• HP | 5

• Tank Size | 80

• Voltage +/- 10% | 230

• Phase | 1

• Drive Type | Electric

• Tank Drain | Manual

• Pump Type | Pressure

• CFM | 19

• Silent Air | Y

• Smart Air | N

• Compressor Type | Piston

• Motor Type | ODP

• Duty Cycle | 0.6

• Outlet Size | 3/4"

• Belt Count | 2

• Pump Stage | 2

• Pump Model | APP2I0524TP

• Pump Riser | N

• Belt Tensioner | N

• Magnetic Starter | N

• Radiator | N

• Continuous Run | N

• Peak Starting Amps | 135

• CFM At Max PSI | 17

• Battery Included | N/A

• Pump RPM | 730

• Motor RPM | 1740

• FLA + 1.15 Service Factor | 26.45

• Locked Rotor Amps | 135

• Recommended Breaker | 40

• Max PSI | 175

• Uncrated Weight | 616

• Crated Weight | 765

• Uncrated Dims | 41"l x 27"w x 73"h

• Crated Dims | 49"l x 46"w x 87"h

• Oil Capacity | 1.75

• Oil U/M | Quarts

• Start Type | FIXED

• Estimated Pump Life (Hours) | 70000

• Certifications | ETL, ASME, CRN

• Service Kit | EFKIT008AWBS
