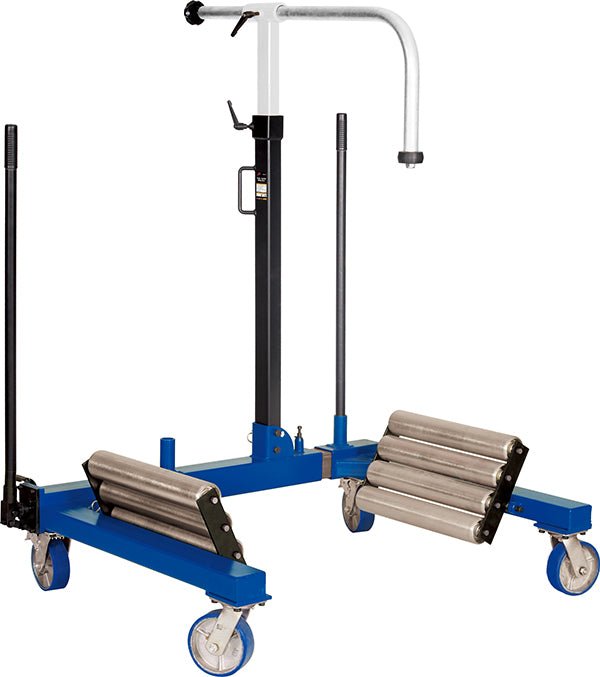

ATD 7237 Heavy Duty Truck Tractor Tire Wheel Dolly

Features:

• Heavy-duty lift arms with ball bearing conveyor rollers allow easy wheel rotation for bolt pattern whole alignment
• Handles tires from 38" to 87" diameter and up to 41" wide
• Foot pedal provides adjustable height for unobstructed access to hub area
• Side-to-side lift arm adjustment eliminates the trial and error method of alignment
• Rear mounted ball bearing casters provide easy maneuverability
• Locking casters prevent the dolly from moving
• Powder coat finish
• Pedal allows the length to retract
• 8 locking positions for a variety of tire sizes
• Loose ball handle allows easy rotation of the stabilizer bar
• 2 locking handles for adjusting the stabilizer bar height and length

Specifications:

• Capacity | 3,300 lbs.
• Min./Max. Height | 0" to 27.56"
• Rollers length | 19-11/16"
• Overall width | 40"
• Caster diameter | 5.9"
• Handle length | 39-5/16"
• Min overall length | 51-5/8"
• Max overall length | 81-3/4"
• Min overall height | 53"
• Max overall height | 84-3/4"
• Maximum wheel width | 31-1/2"
• Min length between rollers | 28"
• Max length between rollers | 59"
• Min wheel stabilizer bar length | 8-1/4"
• Max wheel stabilizer bar length | 33-5/16"
• Distance between locking positions | 2-5/8"
• Weight | 275.6 lbs.
