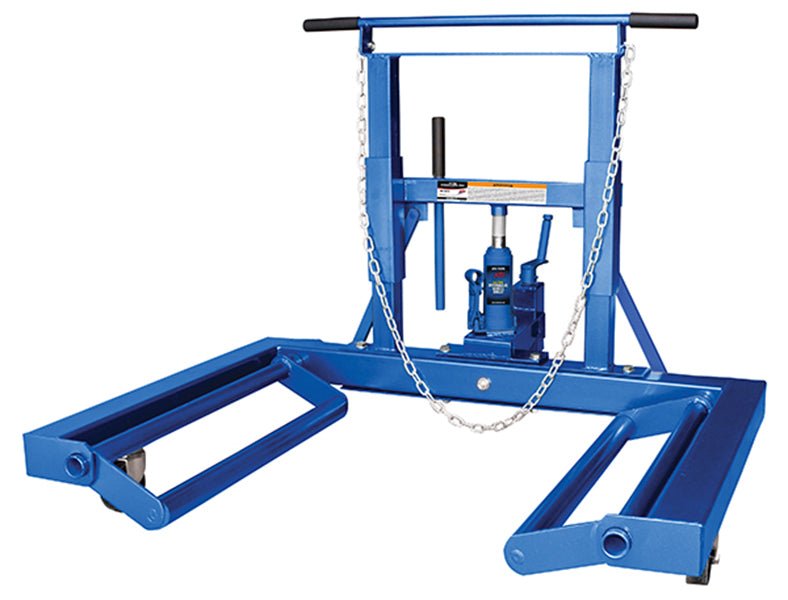

ATD 7227B 3/4 Ton Hydraulic Wheel Dolly

For the removal, installation, and transportation of single, dual, and duplex tires and wheel assemblies.

Features:

• Lift arms can be adjusted to handle different wheel combinations
• Leveling screw adjusts tilt angle for precise alignment
• Suitable for tire diameters of 23-5/8" to 60"
• (3) swivel casters (1 locking) allow for easy movement and positioning
• Safety chain for securing loads
• Meets or exceeds ASME PASE 2019 standards

Specifications:

• Capacity | 3/4 Ton / 1500 lbs.
• Lifting Range | 3-3/8" - 11-1/4"
• Tilt Range | -1.2˚ to 4.8˚
• Lifting Arm Dimensions | 25-1/2" (D) x 32-1/2" (W)
• Jack Size | 41-3/8" (L) x 42-15/16" (W) x 32-1/2" (W)
• Weight | 178 lbs.
