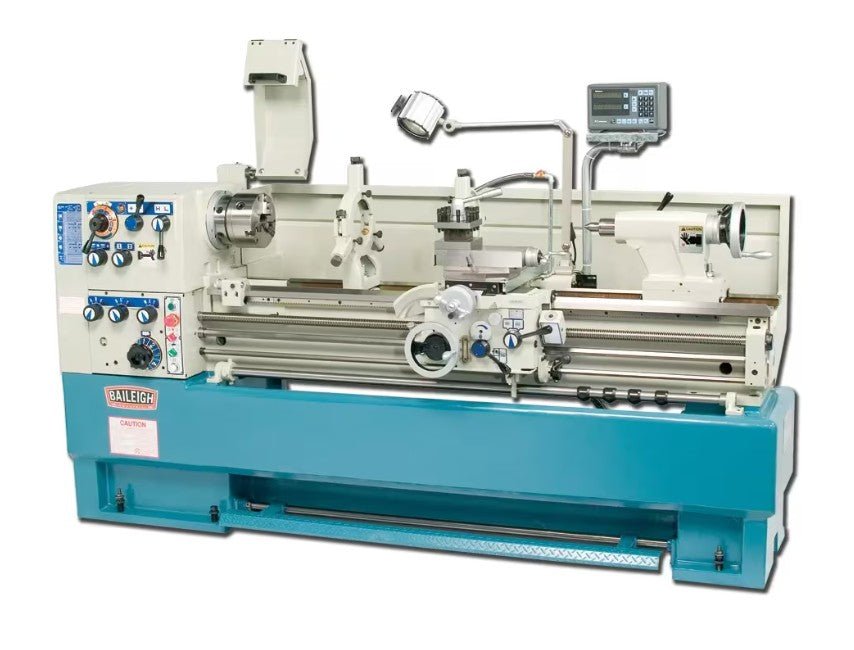

Baileigh Industrial PL-1860 Engine Lathe

Industrial Construction: The Baileigh PL-1860 is a heavy-duty engine lathe built for precision and power in demanding shops. Its robust cast-iron base and precision-ground bed ways provide stability and accuracy for long shafts and large-diameter workpieces.
Power & Performance: With an 18" swing over bed and 60" between centers, this lathe handles oversized turning tasks with ease. A geared headstock and reliable torque delivery ensure consistent cutting across a wide range of materials.
Integrated Precision: Equipped with a Mitutoyo 2-axis digital readout (DRO), operators gain accurate feedback for efficient setup and machining of both standard and metric threads.

Features:

• Swing capacity: Supports an 18" swing over bed for large workpieces.

• Center Distance: Offers 60" between centers for long stock turning.

• Motor Power: Driven by a 7.5 HP, 220 V, 3-phase motor for industrial workloads.

• Spindle Bore: Features a 3.125" spindle bore to accommodate larger bar stock.

• Speed Range: Provides spindle speeds from 30–2000 RPM for versatile cutting.

• Digital Readout: Includes a Mitutoyo 2-axis DRO for precise positioning.

• Bed Design: Cast-iron construction with precision-ground bed ways ensures rigidity and accuracy.

• Threading: Capable of both standard and metric thread cutting.

• Warranty & Support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.

Specifications:

• SKU | BA9-1006157

• Old Material Number | 1006157
• Bed Height | 12.2"

• Center Height | 9"

• Compound Rest Width | 4.92"

• Compound Slide Travel | 5.31"

• Cross Slide Travel | 9"

• Cutting Tool Max Section | 0.625" x 0.625"

• Digital Readout | Yes

• Distance Between Centers | 60"

• Gross Weight | 4380 lbs

• Horse Power | 7.5hp

• Input Power | 220V Three Phase

• Lead Screw Diameter | 1.25"

• Leadscrew Thread Pitch | 4 T.P.I.

• Longitudinal Feeds Imperial Qty Speed | 40 / .0012 in. - .0252 in. / rev.

• Longitudinal Feeds Metric Qty Speed | 40 / .032 - .640 mm / rev.

• Motor | 7.5hp

• Motor | 3 phase

• Quill Taper | MT6

• Range of Cross Feeds (MMPR) | 40 / .015 - .320 mm / rev.

• Speed | 30 - 2000 rpm

• Spindle Speeds | 30 to 2000 RPM

• Spindle Taper with Sleeve | MT4

• Swing Over Bed | 18"

• Taper in Tailstock Spindle | 2.125"

• Threads Diametrical Quality Speed (D.P.) | 32 / 4-32 D.P.

• Threads Imperial Quality Speed (T.P.I.) | 40 / 2-56 T.P.I.

• Threads Metric Quality Speed (mm pitch) | 53 / .4 - 14 mm pitch

• Threads Modular Quality Speed (M.P.) | 44 / .4 - 7 M.P.

• Warranty | 1 Year
