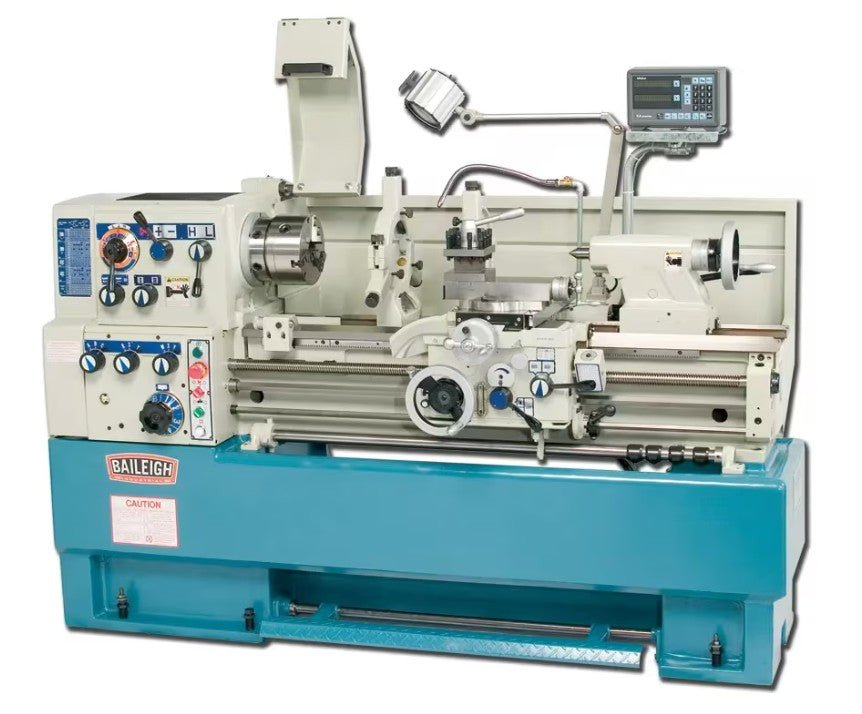

Baileigh Industrial 16" x 40" Precision Metal Lathe, Mitutoyo DRO (PL-1640)

Industrial Construction: The Baileigh PL-1640 Precision Lathe is engineered for mid-to-large workpieces with a heavy cast iron base integrated into the main frame to minimize vibration and maintain rigidity under load.
Precision & Performance: Equipped with a robust 7.5 HP, 220 V 3-phase motor and a geared head design offering multiple spindle speeds from 30 to 2000 RPM, this lathe delivers consistent power and smooth torque across turning, facing, threading, and contouring operations.
Shop Versatility: Built with precision-ground and hardened ways and a factory-installed Mitutoyo digital readout (DRO), the PL-1640 supports accurate, repeatable cuts and expanded capabilities, making it ideal for production shops, tool rooms, and maintenance departments requiring precision and long-term reliability.

Features:

• Swing Over Bed: This lathe provides a 16" swing over the bed for larger diameter workpieces.

• Between Centers: This machine features 40" between centers for long workpiece machining.

• Motor Power: A 7.5 HP motor supplies industrial-grade power to the geared head.

• Power Requirement: The lathe operates on 220 V 3-phase shop power.

• Spindle Speeds: A multi-step geared head delivers a spindle speed range from 30 to 2000 RPM for versatile cutting.

• Digital Readout: Factory-installed Mitutoyo digital readout (DRO) on X and Y axes enhances precision and repeatability.

• Spindle Bore: This lathe features a 2.0625" spindle bore to support larger bar stock.

• Spindle Taper: The spindle uses Morse #4 taper with a Morse #6 nose for broad tooling compatibility.

• Construction: Rigid cast iron base and precision-ground ways provide stability and long-term accuracy.

• Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.

Specifications:

• SKU | BA9-1006140

• Old Material Number | 1006140
• Assembled Dimensions | 90" x 37" x 81"

• Bed Height | 12.2"

• Center Height | 7.086"

• Compound Rest Width | 4.33"

• Compound Slide Travel | 4.75"

• Cross Slide Travel | 9"

• Cutting Tool Max Section | 0.625" x 0.625"

• Digital Readout | Yes

• Distance Between Centers | 40"

• Gross Weight | 3720 lbs

• Horse Power | 7.5hp

• Input Power | 220V Three Phase

• Lead Screw Diameter | 1.25"

• Leadscrew Thread Pitch | 4 TPI

• Longitudinal Feeds Imperial Qty Speed | 40 / .0012 in. - .0252 in. / rev.

• Longitudinal Feeds Metric Qty Speed | 40 / .032 - .640 mm / rev.

• Motor | 7.5hp

• Motor Phase | Three

• Net weight | 3720 lbs

• Old Material Number | 1006140

• Quill Taper | MT6

• Range of Cross Feeds (MMPR) | 40 / .015 - .320 mm / rev.

• Speed (rpm) | 30 - 2000 rpm

• Spindle Speeds | 30 to 2000 RPM

• Spindle Taper with Sleeve | Morse #4

• Swing Over Bed | 16"

• Taper in Tailstock Spindle | 2.125"

• Threads Diametrical Quality Speed (D.P.) | 32 / 4-32 D.P.

• Threads Imperial Quality Speed (T.P.I.) | 40 / 2-56 T.P.I.

• Threads Metric Quality Speed (mm pitch) | 53 / .4 - 14 mm pitch

• Threads Modular Quality Speed (M.P.) | 44 / .4 - 7 M.P.

• Warranty | 1 Year
