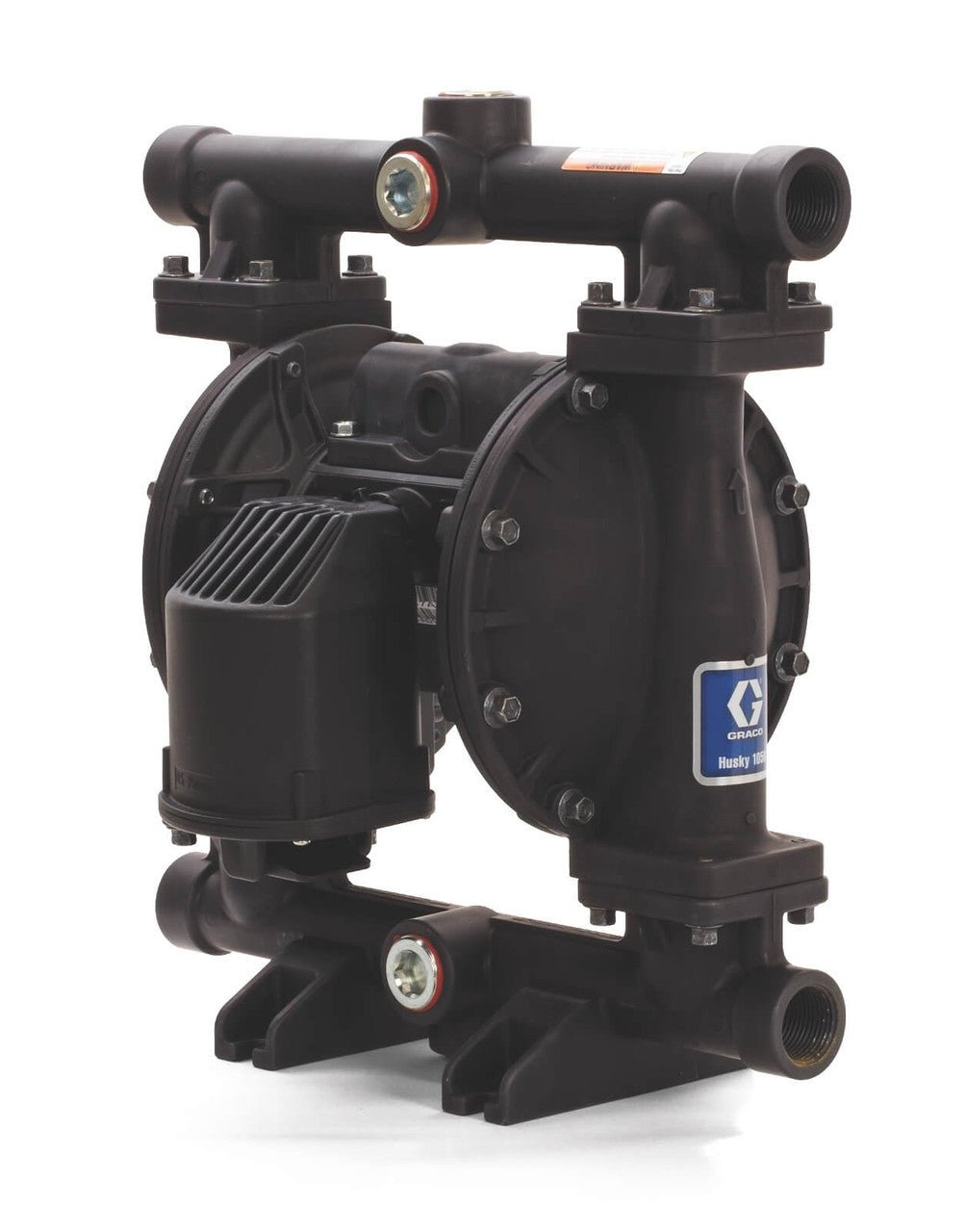

Graco 647648 Husky 1050 Series Air-Operated Double Diaphragm Transfer Pump for Fuel, TPE/AC
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
Features:
- Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
- Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
- One-Piece Center Section - Eliminates air leaks for more efficient operation
- Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation
- Multiple Ports - Increased number of ports for installation flexibility
- Optional Features - DataTrak (Runaway protection and tracks material usage), Pulse Output (Cycle count capability)
- Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
- 30% more efficient than the market leader
- 20% increase in fluid flow compared to the Husky 1040
Specifications:
- Air Exhaust Port Size (in) | 3/4
- Air Exhaust Port Thread Gender | Female
- Air Exhaust Port Thread Type | NPT
- Air Inlet Size (in) | 1/2
- Air Inlet Thread Gender | Female
- Air Inlet Thread Type | NPT
- Application | Industrial
- Ball Material | Acetal
- Center Section Material | Aluminum
- Compatible Material | Fuel
- Connection Type | Threaded
- Diaphragm Material | TPE
- Fluid Inlet Size (in) | 1
- Fluid Inlet Thread Gender | Female
- Fluid Inlet Thread Type | NPT
- Fluid Outlet Size (in) | 1
- Fluid Outlet Thread Gender | Female
- Fluid Outlet Thread Type | NPT
- Fluid Section Material | Aluminum
- For Use With Fuel | Transfer
- Manifold O-Ring Material | None
- Material | Aluminum
- Maximum Air Consumption (SCFM) | 25
- Maximum Air Pressure (MPa) | 0.35
- Maximum Air Pressure (psi) | 50
- Maximum Cycle Rate (CPM) | 280
- Maximum Flow Rate (GPM) | 38
- Maximum Fluid Pressure (MPa) | 0.35
- Maximum Fluid Pressure (psi) | 50
- Maximum Solid Size (in) | 0.125
- Overall Height (in) | 15.9
- Power Source | Air
- Pump Ratio | 1:1
- Seat Material | TPE
- Standards Met | UL
- Type | Pneumatic Diaphragm Pump
- Weight (lb) | 23
- Wetted Material | Aluminum, TPC-ET, Acetal, PTFE, Buna-N
